Nelson

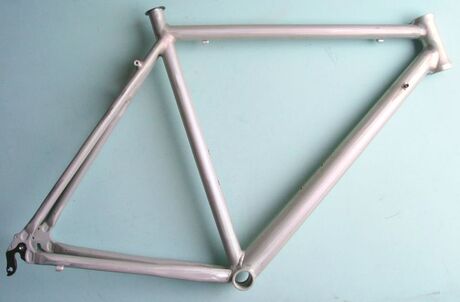

J128 Road Audax Frame - Unpainted

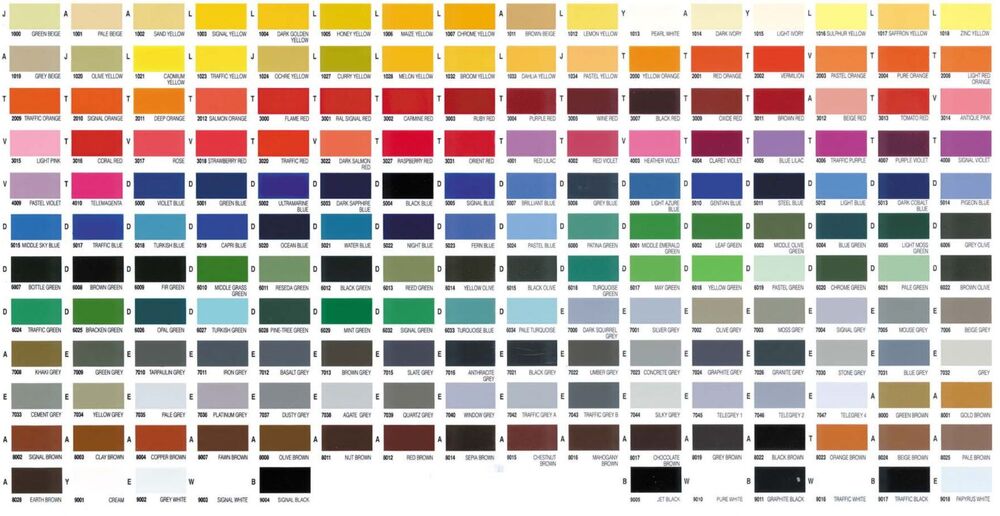

Supplied uncoated, for painting or powder coating by customer (Image gives an indication of available colours in powder coat).
A versatile frame and ideally suited to the British weather!!Pricing
RRP £145.00
£75.00- Description
These frames have been produced to a Nelson design by one of the top Taiwanese manufacturers. Unlike many, this no road frame with mudguard eyes tacked on!
The frames are made from double butted 7005 aluminium & have mudguard & carrier eyes in the correct places. ie The carrier mounts do not interfere with operation of rear brake & the rear carrier may be fitted properly & easily without the need for modification to the carrier fittings. They are comfortable to ride and very forgiving in crosswinds.
The top tube length & head/fork geometry ensure that there is no pedal overlap of the front mudguard.
EXTERNAL cable guides & bosses are included, for less friction and far easier maintenance.
They will take 28mm tyres. 47/57mm brake callipers are required.
A 27.2mm seatpin is required, but not included. A seat clamp is provided.
We recommend the SKS P35 mudguards with this frameset.
A replaceable rear gear hanger is used.
All these frames are measured from the centre of the bottom bracket shell to the top of the seat tube, which finishes about 25mm above the top tube.

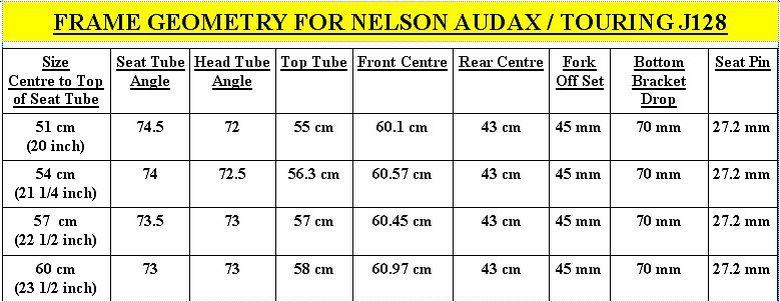

3 sizes are available & these are shown in the accompanying image, which also gives the geometry for the various sizes.
Forks are available (See frameset entry for details) at £50 but are only supplied with a frame. If required, please advise, via additional comments and the extra cost can be added to the order manually.
Products & specifications shown on this website are believed to be correct, but are not guaranteed. No liability is implied or accepted. If in doubt, you are advised to confirm current specifications, before buying.
At present, our stock control system is entirely manual. Whilst we endeavour to keep our records up to date, we are not infallable! Please do not rely 100% on us having an item in stock even if it says so on the website! IF YOU NEED A DEFINATE ANSWER, PLEASE CONTACT US (BUT PLEASE STATE HOW MANY OF AN ITEM YOU REQUIRE)!
